安規測試
詳細信息
以上測試的主要目的是確認被測產品對使用者是安全的，并且完全符合低電壓指令中的質量要求，適用于下列標準 (IEC335, IEC950, IEC601, IEC1010, IEC598, IEC990, IEC204...)
應用領域:
電子設備生產廠，實驗室，高速產線，維修等各類要求符合低電壓指令要求的部門
·IEC 335 家用電氣的安全(洗衣機，咖啡壺，電冰箱，電暖氣，電磁爐等)
·IEC 204 工業設備的安全(壓縮機，電動工具等)
·IEC 598 照明工業的安全(街燈，專用燈具，醫療照明燈，燈泡)
·IEC 601 醫療企業的安全(掃描儀，手術設備，X光機，電子床)
·IEC 950 信息科技工業的安全（調制解調器，衛星接收機，服務器，打印機，自動提款機）
·IEC 1010 測量，控制和實驗室的安全（電子儀表，測試測量設備等）
安規測試儀選擇:
型號 | 接地測試 | 耐壓測試 | 絕緣測試 | 泄漏電流測試 | 功率測試P,U,I, cosΦ | 接口 | 軟件 |
Safety tester SXS50 New | 5-30A AC | 0-5 kV AC 10mA | 50 kΩ-200 GΩ / 500V DC 1000V DC option | FXS501 | FXS501 | RS232 included, GPIB, PLC, Ethernet in option | SXS Pro |
Safety tester SXS56 New | 5-30A AC | 0-5 kVAC 10mA 0-6 kVDC 4mA | 50 kΩ-200 GΩ / 500V DC 1000V DC option | FXS501 | FXS501 | RS232 included, GPIB, PLC, Ethernet in option | SXS Pro |

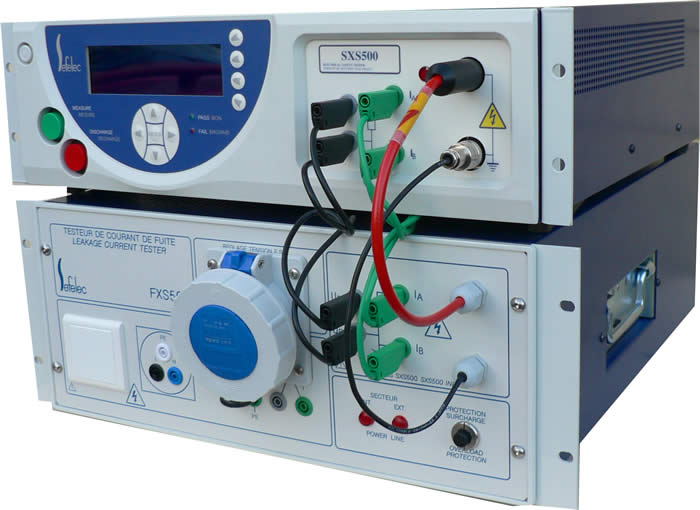

Safety tester SXS500 New | 5-30A AC | 0-5 kV AC 110mA | 50 kΩ-200 GΩ / 500V DC 1000V DC option | FXS501 | FXS501 | RS232 included, GPIB, PLC, Ethernet in option | SXS Pro |
Safety tester SXS506 New | 5-30A AC | 0-5 kVAC 110mA 0-6 kVDC 40mA | 50 kΩ-200 GΩ / 500V DC 1000V DC option | FXS501 | FXS501 | RS232 included, GPIB, PLC, Ethernet in option | SXS Pro |
Safety tester 2745A | 3-40A DC | 0-5 kV AC 0-6 kV DC | 0-10 GΩ | - | - | RS232 in option | No |
Safety tester PST500 | 100 mA, 200 mA, | 0-5 kV AC 500VA | 0-1 GΩ | EN60335-1 EN60950 | Until 16A single phase | RS232 | No |
Line leakage tester FXS501(slave) single or three phases | XS Series | XS Series | XS Series | IEC335, IEC950, IEC598, IEC601, IEC1010, IEC990 | Up to 63 A single phase or three phases | RS232 included, GPIB, PLC, Ethernet in option | SXS Pro |
Line leakage tester FMG500 (master) | - | - | - | IEC335, iEC950, IEC598, IEC601, IEC1010, IEC990 | Up to 63 A single phase or three phases | RS232 included, GPIB, PLC |
